Tandem Axle Slurry Tanker

Ranging in capacity from 10,000 litres to 16,500 litres, the Nevada Tandem Axle Slurry Tanker is a great choice for medium-sized farms. You can haul more effluent, so that means fewer trips and more efficient use of your time. And with more flotation wheels to spread the load, you have a smoother ride than a single axle.
Nevada Tandem Axle Slurry Tanker

Tandem Axle Slurry Tanker

Ranging in capacity from 10,000 litres to 16,500 litres, the Nevada Tandem Axle Slurry Tanker is a great choice for medium-sized farms. You can haul more effluent, so that means fewer trips and more efficient use of your time. And with more flotation wheels to spread the load, you have a smoother ride than a single axle.

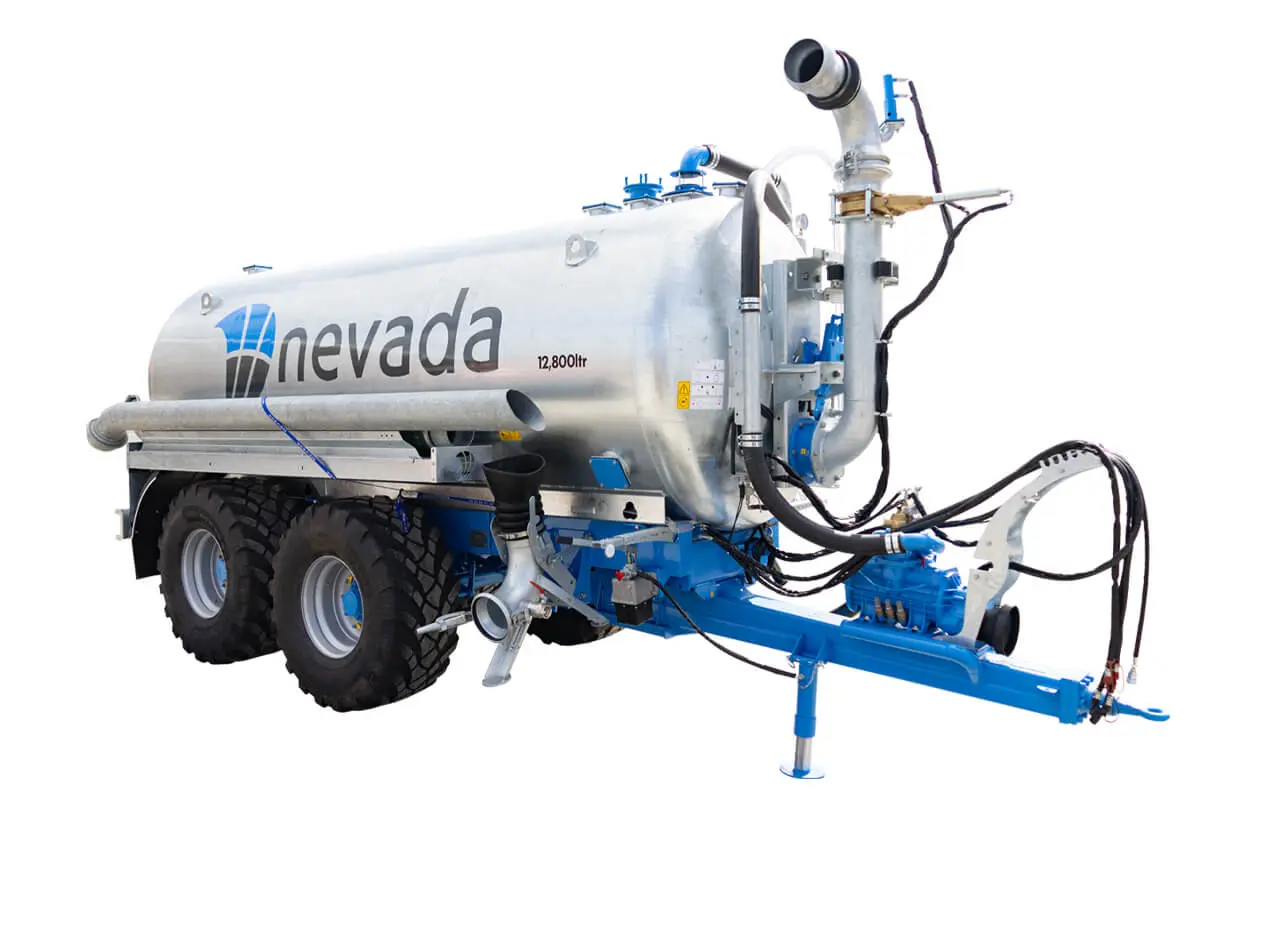

Nevada 12800L Tandem Slurry Tanker filling with the 8in auto fill arm
Tandem Axle Slurry Tanker

A good choice for farms with medium to large storage

Your effluent is a rich source of nutrients, so being able to spread across your whole farm will give you a massive boost in grass growth and soil health. Having a good amount of storage is one thing, but it’s not going to do you much good if you don’t get it onto the paddocks. A Nevada Tandem Axle Slurry Tanker is a great tool to get that job done. You can haul bigger loads, so you’ll make fewer trips. All you need is a tractor with 100-200hp and it will make easy work of spreading your effluent. The four flotation tyres give you heaps of stability.

Price range: $99,500 - $139,500 excl GST

Large 8 inch Auto-Fill Arm

This is a standard piece of kit on the 10,000L and larger tankers. Combine this 8 inch Auto-Fill Arm with the large pond side easel, and you have a Ezy-load system that will make your life so much easier. All you have to do is align the auto-filling arm with the large pond-side filling station, drop it in, and the pump does all the rest. You don’t need to leave your cab, or drag hoses around – none of that. Clean, no hassle, the job of filling up the tanker is done smoothly and quickly. Pull up to your pond and the tanker is filled in minutes. It is quick, allowing you to get more effluent onto your paddocks in less time.

Nevada Slurry Tanker loading effluent via the 8 inch auto-fill arm
Heavy duty vacuum pump on a Nevada Single Axle Slurry Tanker

Tandem Axle Vacuum Pumps

All Nevada Slurry Tankers come standard with heavy-duty Italian Battioni vacuum pumps, built to handle the demands of dairy farming. These PTO-driven pumps are well-suited for thick slurries and offer reliable performance across a wide range of applications.

Tandem axle tankers are fitted with Battioni pumps that have long-life vanes, air injection, and Integrated Crash Protection (ICP) to safeguard internal components. With a reinforced build and enhanced features, these pumps are engineered for an extended 70% duty cycle—ideal for the increased workload and capacity of larger slurry tankers.

Tandem Axle Assembly

Parabolic Leaf Spring Suspension

With a Nevada Tandem Axle Slurry Tanker, you get a smoother ride, which allows for faster travel and also helps reduce track damage across the farm. It achieves this with a drawbar featuring multi-leaf spring suspension to absorb shock loading, helping protect both the tractor and driver from stress and fatigue. Tandem axle models also include parabolic leaf springs on the axles, chosen for their superior stability and reliability.

Hydraulic Braking on Every Wheel

All Nevada slurry tankers include large hydraulic braking on every wheel. This ensures a safe and reliable operation, giving you more control, as well as a manual park brake.

Floating Self Steering

Nevada tankers are built with caster steering and hydraulic lockout, providing easy turning for the majority of farming situations.

Nevada Slurry Tankers are built with a drawbar incorporating multi-leaf spring suspension to absorb shock loading
Nevada Slurry Tanker with hydraulically driven steering

Alternative Options

Hydraulic & Pneumatic Suspension

Hydraulic and pneumatic suspension is available on request for tandem and triple axle models.

Forced Steering

Contractors doing a lot of work moving around tight corners, or having to back up around tight corners opt for forced steering, where steering is hydraulically driven from the tractor.

Gallery

Thumbnail 1
Thumbnail 2
Thumbnail 3
Thumbnail 4
Thumbnail 5
Thumbnail 6
Thumbnail 7
Thumbnail 8
Thumbnail 9
Thumbnail 10
Thumbnail 11
Thumbnail 12
Thumbnail 13
Thumbnail 14
Thumbnail 15
Thumbnail 16
Thumbnail 17
Thumbnail 18

RainWave™ Applicator, Standard on Tandem Axle

Every Nevada Slurry Tanker comes with a RainWave™ effluent applicator as standard, and owners enthuse about the performance.

The Nevada RainWave™ is an oscillating system that is self-driven – there is no hydraulic or electric drive, it simply oscillates from side to side. This simplicity delivers a nice wide and even spread of effluent across the paddock. As the system oscillates, large droplets fall through the grass/crop onto the ground surface. The immediate benefit is virtually no wind drift issues or volatilisation of nitrogen disappearing into the atmosphere, with minimal smell or odour. It also gives you very precise control and accurate spreading, so you can reach every corner of your farm.

Nevada RainWave spreading dairy effluent

Technical Specs

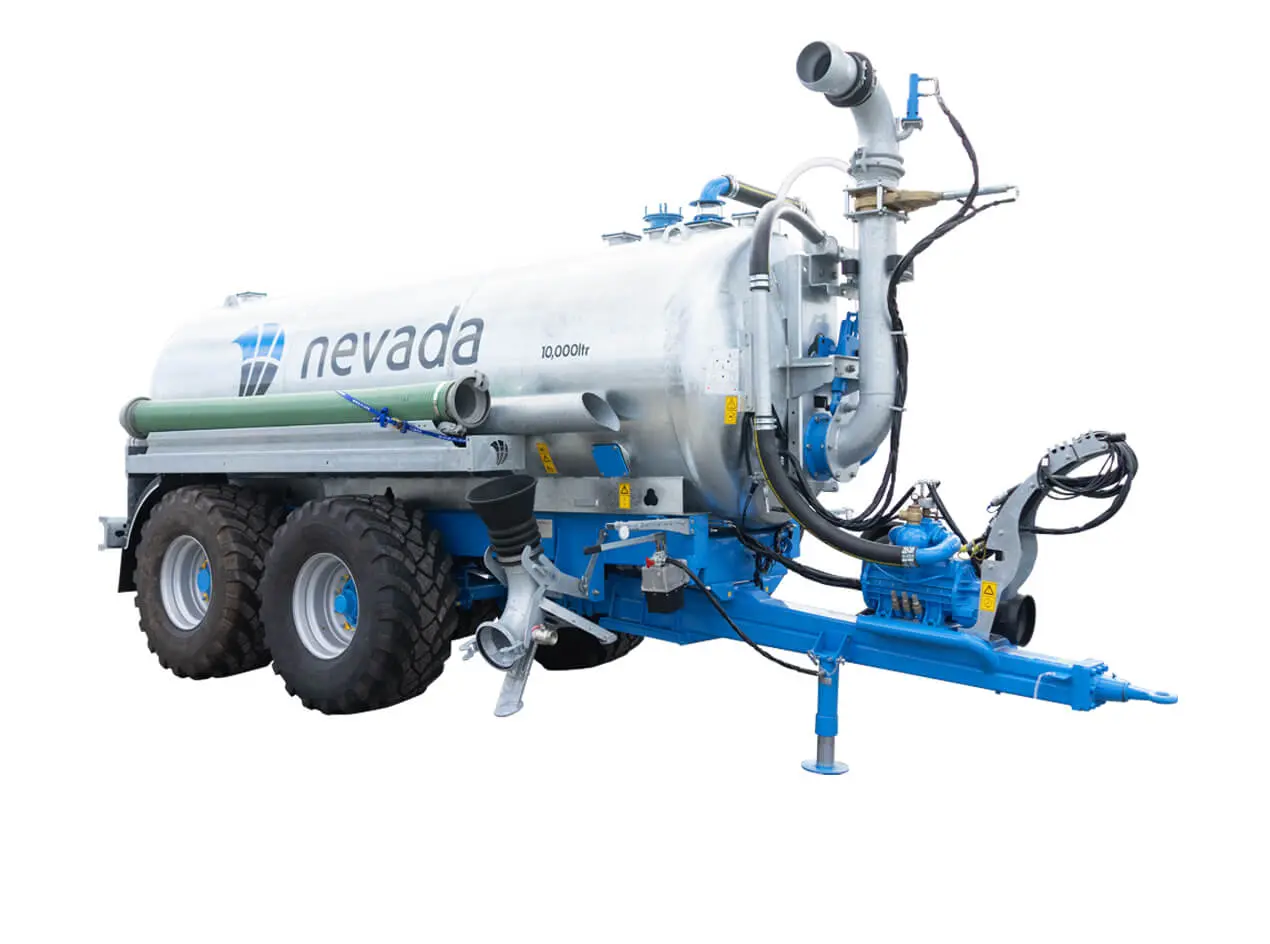

MB100-4R Tandem Axle
  • Tank Size10,000L
  • Length7.2m
  • Width2.55m
  • Height3.3m
  • Battioni Vacuum Pump ModelBallast 13500M Air Injected
  • Vacuum Pump Flow13,500L p/min
  • Axle TypeTandem
  • Steering AxleYes
  • Wheels560/60-22.5
  • SuspensionAxle & Drawbar
  • Auto-Filling Arm8in Standard Front Mount
  • Applicator TypeRainWave™
  • Min Tractor Requirements100hp
  • Tare Weight5,000kg
MB120-4R Tandem Axle
  • Tank Size12,800L
  • Length7.6m
  • Weight2.55m
  • Height3.3m
  • Battioni Vacuum Pump ModelBallast 13500M Air Injected
  • Vacuum Pump Flow13,500L p/min
  • Axle TypeTandem
  • Steering AxleYes
  • Wheels560/60-22.5
  • SuspensionAxle & Drawbar
  • Auto-Filling Arm8in Standard Front Mount
  • Applicator TypeRainWave™
  • Min Tractor Requirements120hp
  • Tare Weight5,300kg
MB140-4R Tandem Axle
  • Tank Size14,700L
  • Length7.9m
  • Weight2.55m
  • Height3.3m
  • Battioni Vacuum Pump ModelBallast 13500M Air Injected
  • Vacuum Pump Flow13,500L p/min
  • Axle TypeTandem
  • Steering AxleYes
  • Wheels560/60-22.5
  • SuspensionAxle & Drawbar
  • Auto-Filling Arm8in Standard Front Mount
  • Applicator TypeRainWave™
  • Min Tractor Requirements140hp
  • Tare Weight6,000kg
MB160-4R Tandem Axle
  • Tank Size16,500L
  • Length8.4m
  • Width2.55m
  • Height3.3m
  • Battioni Vacuum Pump ModelBallast 16500MA Air Injected
  • Vacuum Pump Flow16,800L p/min
  • Axle TypeTandem
  • Steering AxleYes
  • Wheels560/60-22.5
  • SuspensionAxle & Drawbar
  • Auto-Filling Arm8in Standard Front Mount
  • Applicator TypeRainWave™
  • Min Tractor Requirements160hp
  • Tare Weight6,800kg

We’re Here For You

Nevada slurry tankers & stirrers are high-quality and trusted by New Zealand farmers for safety and reliability. That is why they are supported with a two year warranty, and backed by customer service that is second to none.
